| CL Model single-spindle winding machine |
| Post Date :2015-05-28 |
| Expire Date :2015-11-04 |
 View Basket |
| technical parameter: talk on Skype, use for: wind, moq: 1, model: CL-A,CL-B,CL-C and others |
| Detailed Trade Lead Description |
CL Model winding machine has four series, i.e. A type pagoda, B type cylinder, C type cone and CL Model single-spindle winding machine (especially design for the thread dividing work in clothing plant and embroidery plant). Each series has been shaped into the effective length according to the balls with various specifications. The common specifications are 1.5 inch (38mm), 1.8 inch (45mm), 2 inch (50mm), 3 inch (75mm), 3.4 inch (85mm), 3.6 inch (90mm), 3.8 inch (95mm), 4 inch (100mm), 5 inch (125mm), 6 inch (150mm). It may also produce the special specifications goods according to the consumer's requirements.
|
|

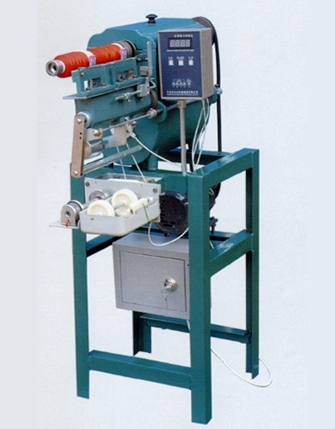

CL Model single-spindle winding machine (especially design for the thread dividing work in clothing plant and embroidery plant)
Function features:
It is equipped with the new generation computer measuring apparatus.
It is equipped with the thread break auto-stop device.
It is equipped with the electron tension and silicone oiling device.
It is equipped with the disconnecting automatic memory function.
|
|
|
|
|
|
|
|
|
2 "
|
3"
|
4"
|
6"
|
Cone for each spindle
|
2
|
2
|
2
|
1
|
Thread Length
|
0-1000M
|
0-1500M
|
0-10000M
|
1000g
|
Motor
|
380V/220V 50Hz 180W×1～2
|
Machine volume
|
0.40ML/0.70MW × 1.15MH/0.70ML × 0.70MW × 1.15MH
|
Weight of the Machine
|
30～60Kg
|
Measurement
|
0.50ML/0.80MW × 1.25MH /0.80ML × 0.80MW × 1.25MH
|
Weight
|
50～80Kg
|
|
|
|
|
|
| |
