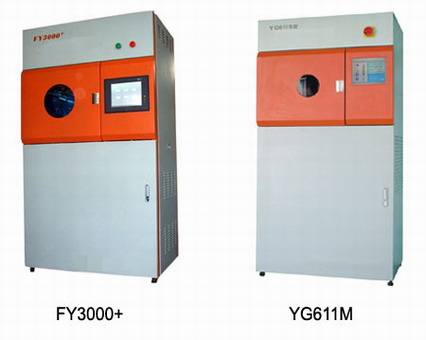

| FY3000+ WATER-COOLED WEATHER CONDITIONS METER
INTRODUCTION:
Application: Be useful for determining color fastness to sunlight of colored textile, leather, leatheroid, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab. Be able to control irradiance real-time, automatically inspect and compensate irradiance, temperature, humidity.
RELATED STANDARDS:
AATCC16 ISO105-B02 ISO105-B04 JIS 0843
FEATURES:
(1) Presetting various specification, capable of programming function, meet diverse range of standards, including AATCC, ISO, BS, etc. Also have customer test function.
(2) Touch screen, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them.
(3) 4500W water cooled xenon arc lamp system, accurately simulate sunlight spectrum.
(4) Irradiance auto- compensate system, control irradiance, temperature, humidity timely in closed loop,
(5) Large amount of test specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
(6) DI water system to ensure purity of lamp water and spray water
(7) Each specimen time individually. Ease to test different specimen in one test.
(8) Multi-point inspection: malfunction alarm, self-diagnostic function, ease to maintenance
KEY SPECIFICATION:
Power Supply: AC220V (+ -) 5% 50Hz 9000W (Max)
Irradiation source: 4500W Air-cooled Long Xenon Arc Lamp
Xenon Arc Lamp Power: 220V 50HZ 4500W
Average Lamp Life: 1500 hours
Rack rotating speed: 3r/min
Rack outside radius: 224mm (Centered on the Xenon-arc Lamp)
Specimen Holder Exposure Area: 100 x 45mm (GB) 120 x 60mm (AATCC)
Specimen number: 29pcs (GB); 17pcs (AATCC) (Max)
Chamber temperature range: 25degree ~ 85degree (+ -) 2degree
BPT or BST:
BPT: 20degree ~ 120degree (+ -) 2degree
BST: 20degree~130degree (+ -) 1degree
Humidity: Light Cycle: 10%RH~85%RH (+ -) 5% RH
Dark Cycle: 10%RH~100%RH (+ -) 5% RH
Irradiance range (20~100) (degree) 1W/m2 @300 ~ 400nm (Wide bandwidth measurement)
(0.550~2.500) (degree) 0.02W/m2 @20nm (Narrow bandwidth measurement)
Compressor power: 1500W
DI water container: 5000mL
Dimension: 1200 x 670 x 1800mm (L x W x H)
Floor space: 1050 x 3000mm (Min)Weight: 400kg
BASIC CONFIGURATION:
1. A host machine and accessories as following
Item Quantity
(1) AATCC specimen holder 18pcs
(2) BPT 1pcs
(3) BST 1pcs
(4) Lamp 1pcs
(5) Light Filter 1pcs
2. Di water System 1pcs
(1) First step water-filter 1pcs
(2) Second step water-filter 1pcs
(3) Third step water-filter 1pcs
OPTIONAL ACCESSORIES:
Item Quantity
1. Specimen holder (ISO) 30pcs (1 set)
2. Heat exchange (Select one of them)
(1) Outer refrigeration system 1pcs
(2) Tap water cyclic utilization 1pcs
3. Specimen cup 1pcs
(color fastness to perspiration) |
|
|
