Product synopsis：

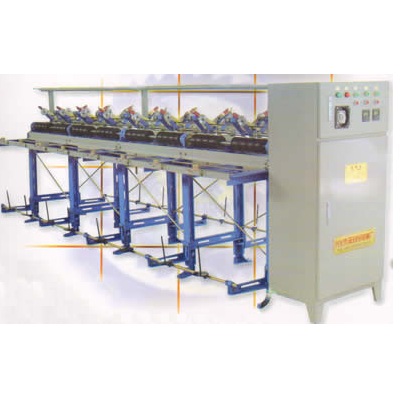

Machinery use     TS230, type 280 jumbo roll, drum machine, used in chemical fiber, cotton yarn, yarn, yarn, winding into a conical or cylindrical, for the next process, forming good, no phenomenon of edge collapse, jumbo roll can reduce the labor intensity of the next process, suitable for high speed production. The main specifications     Type: double groove tube     Each spindle number: 8, 16, 32, 40, 48     Spindle pitch: 370-430 mm     Line speed: 300-400 M / min ( according to raw materials increase or decrease)     Yarn guide path: 185-245 mm     Drum rotation speed: 1580 RPM ( may be required to increase or decrease)     Cylinder size: 250 * 300 mm     Dimensions: width 1500 * 1500 * 2300 + per section 1850 mm     Transmission method: triangle belt drive drum shaft     In addition the machine can choose photoelectric automatic stop device, frequency conversion and speed control     device is also suitable for hank variable yarn, pine cones after dyeing.
