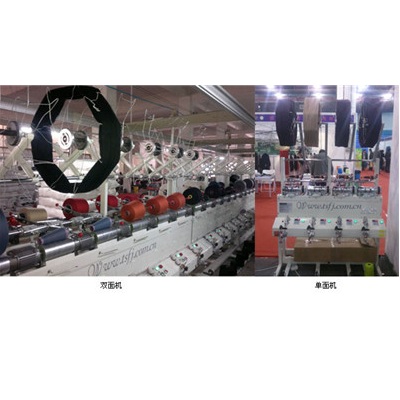

TS008P Hank to cone Winder

Post Date :2016-05-22

Expire Date :2015-12-16

View Basket

Detailed Trade Lead Description

Machine Application:
TS008P Hank to cone winding machine is for winding yarns from Hank to Cone, they are applied to the processes such as warping, knitting and yarn combining etc..
Feature:

1. Drive: every spindle per motor

2. Winding speed: 300-500 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters：

Bobbin type:

6"(170mm)

Layout

Double-side, can be 12-96 spindles

Power Supply

Three phases 380V 50/60HZ

Driving

Every spindle per motor

Power Comsumption

0.09KW/spindle

Take-up package

Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

Yarn tension and waxing device

Every spindle has a yarn tension and waxing device

Auto Stop Device

Each spindle install auto stop device

Electronic Anti-Stack

Inverter control

Cleaner device

Every spindle has a Mechanical Knife yarn cleaner

Electronic Yarn Cleaner

Optional installed

Air Splicer

Optional installed

Lighting System

Optional installed

Dimensions

L 13700 x W 1050 x H 1650 mm
