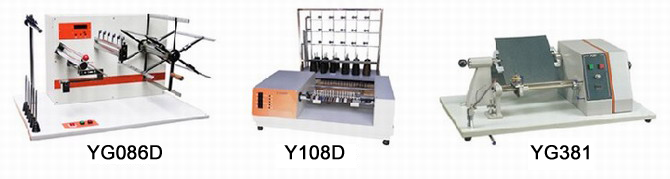

| YG381 YARN EXAMINING MACHINE
INTRODUCTION
Yarn Examining Machine. To assess the evenness, hairiness, neps and other imperfections in a representative sample of yarn wound at a pre-determined pitch onto a quadrate black board. Variable pitch traverse 4 - 19 wraps per centimetre, variable winding speed drive, with yarn package stand and 2 quadrate aluminium black boards 250mm x 180mm, 250mm x 220mm. Assessment against photographic comparison standards (not included).
SPECIFICITION
(1) Black board size: 250 x 180mm, 250 x 220mm
(2) Pitch of yarn: radius 4 (standard), 7, 9, 11, 13, 15, 19wraps/cm
(3) Reel speed: 10-400 r/min (continuous adjustable)
(4) Power supply: AC220V, 0.5A, 50W, 50HZ (or specified by user)
(5) Instrument size: 720 x 480 x 250mm
(6) Instrument weight: 30kg
FEATURES:
(1) Fully digital speed controlling circuit, work more reliably and consistently
(2) Synchronized motor, link motor and reel with triangle belt, works more silently and need less maintenance |
|
|
| |
