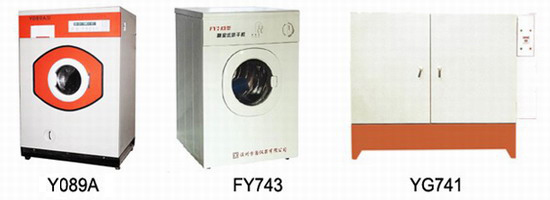

| FY743 PRECISION TUMBLE DRYER
INTRODUCTION
Standard Tumble Dryer. A standard domestic tumble dryer recommended by many fabric specifies, 120 minute timer, 5kg load, reversing action, 2 heat settings and 10 minute cooling time.
Precision Tumble Dryer with Digital Controller, A standard domestic tumble dryer which has been modified with the addition of an accurate electronic controller to control exhaust temperature to +/-1 degree C and cycle time within one second. Capacity 5kg, reversing action, 10 minute cooling time
APPLICATIONS
M+S P1A, 3A, 3B, 4, 4A, 12, 99A, 91, 134
NEXT 7 BS EN ISO 26330
SPECIFICITION
(1) Drying mode front-loading, horizontal rotating cage
(2) Diameter of rotating cage diameter 580mm
(3) Volume of rotating cage 100L
(4) Rotating speed: 50r/min
(5) Circumferential acceleration 0.84g
(6) Lifter 3pcs
(7) Drying duration adjustable
(8) Temperature two section, adjustable
(9) Temperature of exhaust < 72degree
(10) Instrument Size 860 x 580 x 595 mm (L x W x H)
(11) Power supply AC220V, 2000W (or specified by user)
(12) Instrument Weight 35kg
FEATURES
(1) Automatic temperature-self-protection of exhaust outlet
(2) Water vapor from fabric or apparels is expel directly through a pump, cancel cooling process to save energy;
(3) Back and front of cage is support with two contact, rotating more stable and smooth. |
|
|
