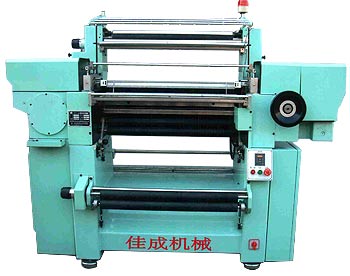

| JC-980 High Speed fancy Yarn Crochet Machine |
| Post Date :2011-10-27 |
| Expire Date :2009-05-21 |
 View Basket |
| JC-980 |
| Detailed Trade Lead Description |
| Characteristics
JC-980 High Speed fancy Yarn Crochet Machine controls the device by changing inlay methods to produce all kind of pattern yarns. The machine speed is controlled by an inverter, so that It can starts at a slow speed with stepless changes, and fastly breaks to low speed to meet the demand of testing process,The machine is divided into three main sections,as follows:(mm)
1,Main machine(L*W*H):1750*1950*1750
2,Winding section(L*W*H):3000*2800*2400
3,Yarn frame(L*W*H):4200*1880*2750
USAGE:
JC-980 Model is a High Speed fancy Yarn Crochet Machine. The machine first knits with warp and weft yarn, then cuts the weft yarn to form the final yarn. or it straightly knits belt yarns out of warp and weft yarns.JC-980 machine is suitable for all kinds of fibres , both natural fibres(wool,silk.cotton ,etc.)and synthetic fibres(polyester,acrylic etc.) These materials can de dyed before or after knitting,in accordance with requirements.The appearance of the fancy yarn is the core yarns knitted into rings and the weft yarns used as its mattress. the finished yarn is of flat shape.
MAIN TECHNICAL PARAMETERS :
1,Operational Width:762mm(30inch)
2,Gauge needles per inch:15,18,20
3,Weft needle:2sets
4,Stitch density:5-20S/cm
5,Link chain:12-50sections
6,Main shaft speed:Max1500r/min
7,The girth of rack frame:170cm
8,whole machine power:1.56KW
9,No. of bobbins:520 pieces
10,Gauge of yarn spindle:200mm
|
|
|
