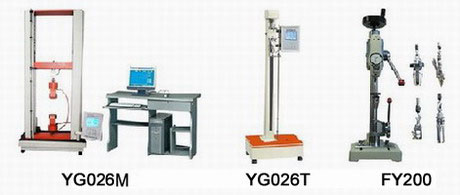

| YG026M Fabric Strength Testing Machine (Desk Type)
INTRODUCTION
Fabric Strength Testing Machine is designed for a wide range of applications including: Bending, Compression, Tensile Testing, Peeling, Lamination etc. The Fabric Strength Testing Machine offers excellent accuracy and ease of use. It is strong and durable enough to withstand many years of use, yet it has a compact load frame that provides greater flexibility of placement. Whether you choose the base unit or add the optional advanced software package, the Fabric Strength Testing Machine, the standard in Universal Tensile Testing. The load cells used offer one-touch zero adjustment and load cell capacity discrimination guarantees accuracy, and speeds the setup process. This is particularly important when multiple tests are being performed. We can tailor make machines and programs to our customer's requirements.
Suit following tests:
(1) Tensile tests
(2) Tearing tests
(3) Compression test
(4) Adhesion tests
(5) Bending tests
(6) Pull-out tests
(7) Burst tests
(8) Stress-relaxation tests
(9) Peeling tests
(10) Shearing tests
APPLICATIONS
ASTM D79, 418, 434, 1683, 1775
ASTM D2261, 3107, 3787, 4033, 4964
ASTM D5034, 5035, 2256
SPECIFICITION
(1) Load Range: 500N-50000N (Optional)
(2) Load Resolution: 1/50000 (Full capacity)
(3) Load Accuracy: (>=) (+ -) 0. 05% F-S
2% -120% applied load (+ -) 0. 5%
0. 5% -1% applied load (+ -) 1. 0%
(4) Maximum crosshead travel 900mm
(5) Elongation Resolution: 0. 01mm
(6) Effective width 420mm
(7) Frequency of data sampling (>=) 800Hz
(8) Storage capacity (>=) 4000 sets of test report
(9) Speed Range 0.1-1000mm / min
(10) Size and weight 450 x 750 x 1550mm (L x W x H) 200kg
FEATURES
(1) Dynamic Data Sampling More than 800HZ, most precisely to catch culmination value and indicate property of textile material;
(2) Sharp blue LCD Panel, real time display test result, the operator simply selects the required test module and test standard;
(3) Accurately Positioning system with servo motor and ball lead screw support;
(4) Use Mitsubishi 16bit MCU, Mitsubishi 16bit A/D converter, more excellent anti-jamming, more rapid data transfer;
(5) Pneumatic grip, standard joint (link) among sensor, grip and frame makes ease to change;
(6) Real time display of on-going test data (Like mean square value, average, max, min, etc);
(7) Able to preset tensile force;
(8) Force unit: N, Kgf, 1b, in, cN can be switched freely;
(9) Report, diagram are handled by computer and print out from printer;
(10) Calibration file to calibrate the unit and indicate with figure;
(11) Operator can use LCD control panel to operate the unit and print testing data without PC (bidirectional controlling);
(12) Protection, overload, overcorrect, overvoltage protection;
STANDARD CONFIG
(1) Printer, PC;
(2) Software;
(3) Sharp blue LCD controlling panel (5.7");
(4) Precision DC servo motor and driver. |
|
|
